Jide tabbed pane close icon Highlight

[rathinamsm]

Hi Team,

I have an query, In Jide Tabbed Pane, I sets the color using setBackgroundAt( .. "Grey / Light Grey "color for Selected / Unselected tab.
After applying the color. the Close Icon is not visible clearly.

1. How to Highlight the Close Icon / or is there any way to set the customize close icon for the Close Button.
2. The Tab Header border color is not visible in the Grey background color. How to make bold for the tab header border color.

Let me know please

[JIDE Support]

Please try to override JideTabbedPane#createNoFocusButton() then override NoFocusButton#getShadowColor()/getPressedShadowColor()/getForegroundColor()/etc. to customize the color setting of the button.

Thanks,

[rathinamsm]

Hi Team

1. I implemented the above methods by extending JideTabbedPane and implemented TabbedPane customizer and add it to the Jframe. The tab header close buttons fore color, shadow gets affected and working correctly.

public class JideTabbedPaneTest extends JideTabbedPane implements
TabbedPaneCustomizer {

@Override
public NoFocusButton createNoFocusButton(int arg0) {
return new ExtendedNoFocusButton();
}

class ExtendedNoFocusButton extends NoFocusButton {

@Override
public void setOpaque(boolean isOpaque) {

super.setOpaque(true);
}


@Override
public void setBorder(Border border) {

super.setBorder(BorderFactory.createLineBorder(Color.ORANGE, 2));
}

@Override
protected Color getForegroundColor() {
return Color.GREEN;
}

@Override
protected Color getShadowColor() {

return Color.BLACK;
}

@Override
protected Color getPressedShadowColor() {

return Color.BLACK;

}

}

2. But the same is not reflecting in the docking manager.


DefaultDockingManager dockingManager = (DefaultDockingManager) holderPanel.getDockingManager();

dockingManager.setTabbedPaneCustomizer(tabbedPaneCust);


May i please know to resolve it and where is the problem.

[JIDE Support]

JIDE Docking Framework creates its own JideTabbedPane subclass and use it. If you subclass class JideTabbedPane, there is no way for you to use it in JIDE Docking Framework. We will take a look and see if we can provide a solution or workaround in the next release.

[rathinamsm]

Hi Team, Is any update regarding the border color and shadow color to set.
Let me know if there is any update.

Thanks.

[JIDE Support]

After a second thought, I believe you could achieve your goal with the following code. Please give it a try and let us know if it works.

Code: Select all

    @Override
    protected DockingManager createDockingManager(Container contentContainer) {
        return new DefaultDockingManager(this, contentContainer) {
            @Override
            public FrameContainer createFrameContainer() {
                FrameContainer frameContainer = new FrameContainer(this) {
                    @Override
                    public NoFocusButton createNoFocusButton(int arg0) {
                        return new ExtendedNoFocusButton();
                    }
                };
                customizeFrameContainer(frameContainer);
                return frameContainer;
            }
        };
    }


Thanks,

[rathinamsm]

Hi team,

I worked on the idea of highlight the close button,

1. I Created The Class of test_holderpanel extends DockableHolderPanel() implements RootPaneContainer.

2. I created another class which is of JideTabbedPaneTest extends JideTabbedPane(), which has a inner class ExtendedNoFocusButton.

3. I created third class which is dockingManager_test which extends DefaultDockingManger() as you specified in the early post.

4. Last I created TabbedPane_Cust which implements TabbedPaneCustomizer().


In the test_holderpanel I override the method of createDockingManger() of return new DockingManger_Test{), and have the return Button of ExtendedNoFocusButton of jidetabbedpanetest's innerclass(ExtendedNoFocusButton) for the createNoFocusButton of FrameContainer.

To create DockingManger I explicitly call the method createDockingManger in test_holderpanel.

When adding the dockable frames in the dockingManger. No frames are visible.

I have attached the Classes which I used to highlight the Tab “Close Button”.

Could you help what is the mistake in this and to fix the “Tab Color” Issue?

[JIDE Support]

The problem lies on how you override the classes. Please give the modified classes a look FYI.

Thanks,

[rathinamsm]

Hi Team.

Thanks for the Reply.
1. But the setTabResizeMode - None and Fixed is affected when i apply the changes. Please confirm.?

2. Unable to modify the "Tab header border" color. Could You please help me to set the border color of "Tab 2" in screen shot ( my first screen shot in the post). Since the tab color and background color or same. It was hard to identify..

[JIDE Support]

1, I don't think it impacts the tab resize mode. Please let us know why you think it's impacted.
2, Can you please post an image of the test case and let me know which part you want to customize? I can't get a clue from the picture in your first post.

Thanks,

[rathinamsm]

Hi team,

1. As I mentioned in the First Post, if I set The TabbedPane setBackgroundColorAt(); and Application Backgroud as Same, The tab header border is hard to visible.
Please help to achive this tab header border. (Please Refer Picture Jide Post_1.PNG, Jide Post_2.PNG).

2. The Third Jide_post_3 picture shows, that the Yellow Colored box, (setTabResizeMode() - NONE/FIX).in TabbedPane. Is Not Displayed. If we Extended the Dockingmanager and FrameContainer as you suggested.

We applied the setTabResizeMode in TabbedPaneCustomizer().

_panel.getDockingManager().setTabbedPaneCustomizer(new DockingManager.TabbedPaneCustomizer() {
public void customize(JideTabbedPane arg0) {

arg0.setTabPlacement(SwingConstants.TOP);
arg0.setUseDefaultShowCloseButtonOnTab(true);
arg0.setShowCloseButtonOnTab(true);
arg0.setTabResizeMode(JideTabbedPane.RESIZE_MODE_NONE);

help me to show setTab ResizeMode ? and Tab Header Border??..

[JIDE Support]

1, to change the color of the border, please try to manage the color theme in the UI class. The sample code is included in the attached class FrameContainerTest.
2, the resize mode does not have any problem itself. The issue resides on how we override FrameContainerTest#createNoFocusButton(). It's also modified in the attached class FYI.

Thanks,

[rathinamsm]

Thanks Jide Team.

[rathinamsm]

Hi Team,

I worked based on your idea for highlighting the selected and unselected tab with border.

We successfully set the Selected and Unselected border color, tab Foreground color also sets successfully. But we Unable to set the "tab header Background Color".

Please check the overridden method. Is the approach is correct in paintBackground() for setting the foreground and background color.

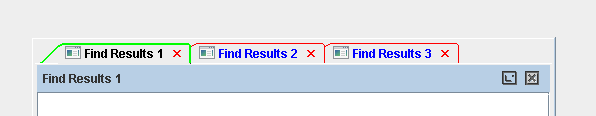

Please see the attached Screen Shot_1,

public void paintBackground(Graphics arg0, Component arg1) {

JideTabbedPane jideTabbedPane = (JideTabbedPane)arg1;
jideTabbedPane.setOpaque(false);

try {
int index = jideTabbedPane.getSelectedIndex();
for (int i = 0; i < jideTabbedPane.getTabCount(); i++) {
if (i == index) {
jideTabbedPane.setForegroundAt(i, Color.BLACK);//---Displaying - refer screen shot
jideTabbedPane.setBackgroundAt(i, Color.WHITE);//---Not Displaying - refer screen shot
} else {
jideTabbedPane.setForegroundAt(i, Color.BLUE); //---Displaying - refer screen shot
jideTabbedPane.setBackgroundAt(i, Color.YELLOW); //---Not Displaying - refer screen shot
}
}
} catch (Exception e2) {
e2.printStackTrace();
}
super.paintBackground(arg0, arg1);
}

[JIDE Support]

Please invoke JideTabbedPane#setBackgroundAt()/setForegroundAt() to change the background/foreground for a specific tab.

Thanks,

[rathinamsm]

Hi Team,
I tried to set the background and foreground to jidetabbedpane as you specified by the setForegroundat(), and setBackgroundat(). in the following ways.

1.Setting the TabbedPane Customizer addChangeListener();

arg0.addChangeListener(new ChangeListener() {
public void stateChanged(ChangeEvent changeEvent) {
int index = arg0.getSelectedIndex();
int tabCount = arg0.getTabCount();
try {
for (int i = 0; i < tabCount; i++) {
if (i == index) {
arg0.setForegroundAt(i,Color.BLUE);
arg0.setBackgroundAt(i,Color.GREEN);
} else {
arg0.setForegroundAt(i,Color.BLUE);
arg0.setBackgroundAt(i,Color.RED);
}
}
} catch (Exception e2) {
}
}
});
2. Defining Color at Override paintBackground() Method in BasicJidetabbedpane(); which SetUi to Frame Container. as like follows.

@Override
public void paintBackground(Graphics arg0, Component arg1) {

JideTabbedPane jideTabbedPane = (JideTabbedPane)arg1;
jideTabbedPane.setOpaque(false);

try {
int index = jideTabbedPane.getSelectedIndex();
for (int i = 0; i < jideTabbedPane.getTabCount(); i++) {
if (i == index) {
jideTabbedPane.setForegroundAt(i,Color.WHITE);
jideTabbedPane.setBackgroundAt(i,Color.GREEN);
} else {
jideTabbedPane.setForegroundAt(i,Color.WHITE);
jideTabbedPane.setBackgroundAt(i,Color.RED);
}
}
} catch (Exception e2) {
e2.printStackTrace();
}
super.paintBackground(arg0, arg1);
}


3. Making the ChangeSkin Method, as Like Follows,

protected void changeSkin() {
resetSkin();
jideTabbedPane.revalidate();
jideTabbedPane.repaint();
validate();
repaint();
}

private void resetSkin() {
int index = jideTabbedPane.getSelectedIndex();
int tabCount = jideTabbedPane.getTabCount();
try {
for (int i = 0; i < tabCount; i++) {
if (i == index) {
jideTabbedPane.setForegroundAt(i,Color.ORANGE);
jideTabbedPane.setBackgroundAt(i,Color.GREEN);
} else {
jideTabbedPane.setForegroundAt(i,Color.ORANGE);
jideTabbedPane.setBackgroundAt(i,Color.RED);
}
jideTabbedPane.revalidate();
jideTabbedPane.repaint();
}
} catch (Exception e2) {
}

}
Please see the Screen Shot_01, in that the setBackgroundAt(), color is not repainted.
Only the foreground is repainting in resetskin().
How can i able to resolve this problem?
Is Any way to set Background for tab?

[JIDE Support]

Please let your ExtendedJideTabbedPaneUI extends VsnetJideTabbedPaneUI.

Thanks,

[rathinamsm]

Thanks for the reply.
